ASSEMBLED ADLIB COMPATIBLE 8 BIT ISA SOUND CARD FOR RETRO COMPUTERS

BUILT TO ORDER ADLIB CARD

HOW DOES IT WORK?

ONCE WE GET YOUR ORDER, WE WILL ASSEMBLE THE CARD FOR YOU WITHIN 5 WORKING DAYS.

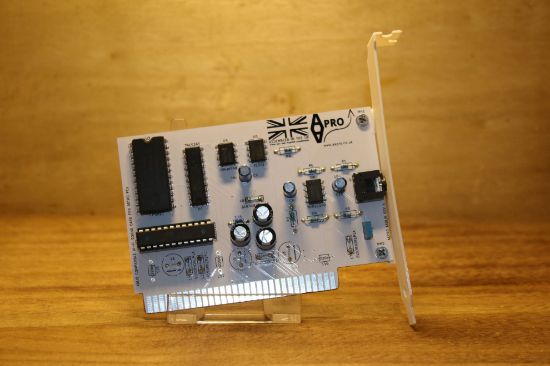

AAPRO AADLIB_V4 SOUND CARD
8 BIT ISA CARD
FOR VINTAGE PC COMPUTERS

THIS CARD WILL ALLOW YOU TO PLAY GAMES AND USE SOFTWARE COMPATIBLE WITH THE ADLIB (YAMAHA OPL2) SOUND CARD ON YOUR VINTAGE PC.
THIS CARD WILL WORK IN ANY COMPUTER EQUIPPED WITH AN ISA SLOT.

WE HAVE TESTED THE CARD WITH GAMES AND WITH MUSIC CREATION SOFTWARE LIKE ADLIB TRACKER II.

WE USE GENUINE YAMAHA OPL2 CHIPS EXCLUSIVELY. THE ANALOGUE SIDE IS BASED AROUND MODERN OP AMPS (TL072 FOR BUFFERING AROUND THE DAC AND NJM2114 / LM4562NA FOR THE OUTPUT STAGE) WHICH GIVES VERY GOOD SOUND QUALITY.

CHECK IT OUT YOURSELF!

THE CARD CAN DIRECTLY DRIVE HEADPHONES (NOT TOO BIG ONES), ANY POWERED SPEAKERS OR A HI-FI SYSTEM.

THE CARD COMES CONFIGURED FOR I/O PORT 388
LET US KNOW IF THIS NEEDS TO BE DIFFERENT AND WE WILL REPROGRAM THE GAL ACCORDINGLY.

HIGH PROFILE, COMES WITH A PLASTIC 3D PRINTED WHITE BRACKET
(DUE TO THE NATURE OF THE 3D PRINTING PROCESS, SOME SMALL DEFECTS AND BLEMISHES MAY OCCUR)
